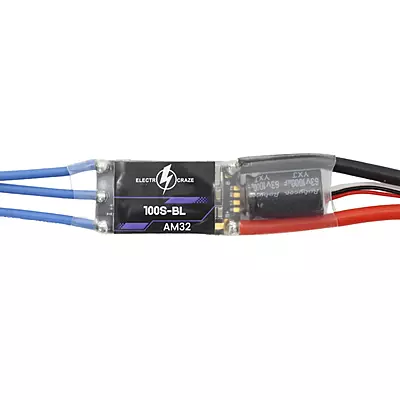

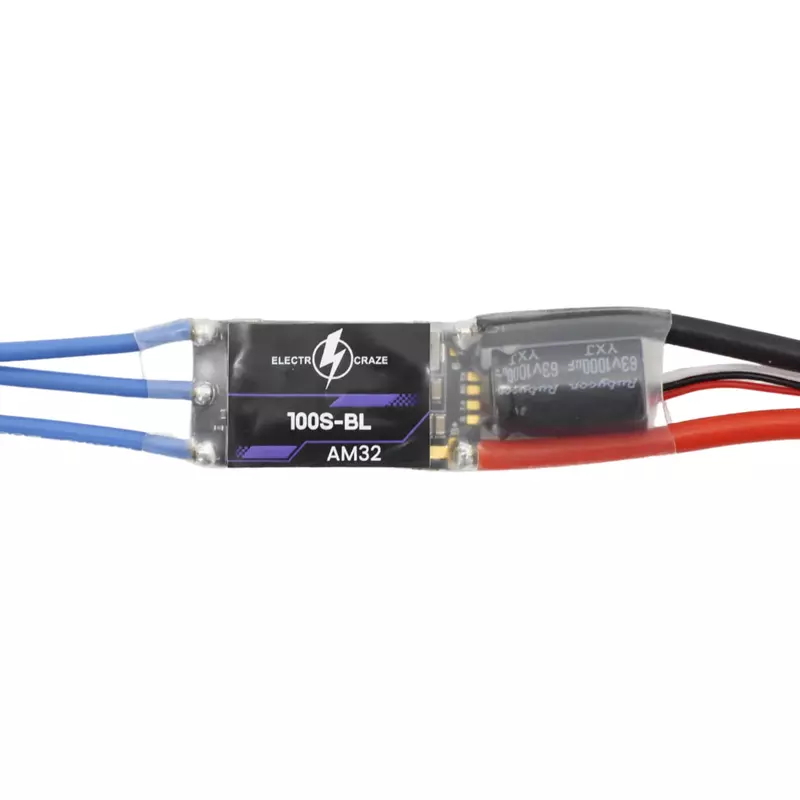

Electrocraze 100S-BL AM32 100A Brushless Motor Controller

The Electrocraze 100S-BL motor controller is the ideal match for your BBOX VENUS 4245 800KV & BBOX SATURN 4068 Brushless Motor! It’s ready out-of-the-box to maximize the performance of your Electrocraze system or any similarly sized brushless motor.

AM32 is an open-source firmware actively developed in the world of drones and RC rock crawlers, with significant applications in robotics. It provides extremely fine motor control, especially at low speeds where high torque is required, surpassing other firmware options. Tuning is simple using freely available software.

For more details, check out the AM32 GitHub!

One of AM32’s standout features is its compatibility with brushless motors. Currently, we offer a brushless firmware, pre-installed with a bidirectional-with-braking setup, optimized for drivetrains like the BBOX VENUS 4245 OR BBOX SATURN 4068 combo.

If you plan to use the Electrocraze 100S-BL ESC with a significantly different motor, we recommend tuning the firmware for optimal performance (instructions below). Note that all controllers are shipped with the latest stable firmware version of AM32, current Firmware 2.5.

If you're planning to build a combat robot, be sure to check out our recommended setup blog.

Specs:

• Current Rating (with adequate cooling): 100A

• Input Voltage: 3S-8S (7.4V to 29.6V)

• BEC: 7.4V

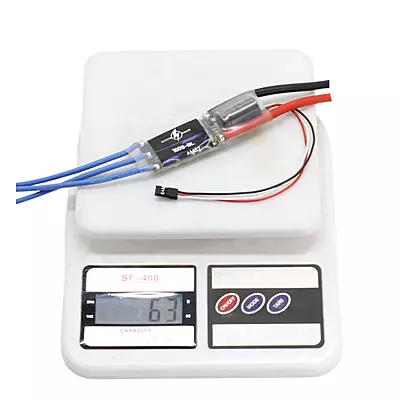

• Weight: 53g (including wires)

• Dimensions (WHL): 80 X 25 X 20 (All dimensions are in mm)

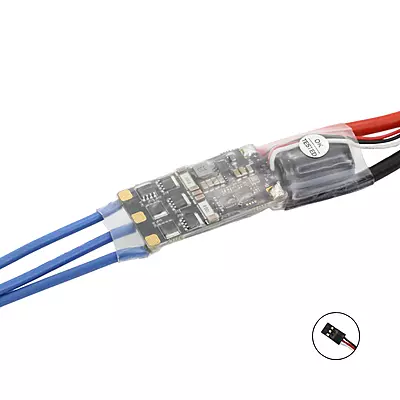

• Wire Specifications: 100mm 8AWG (power) + 170mm 14AWG (motor), 200mm 26AWG wire with connector (signal)


Important Note:

1. The Electrocraze 100S-BL will be shipped with these default settings (bidirectional and not maxed out). If you have a custom firmware request, feel free to reach out, and we’ll be happy to assist!

2. To code this ESC an USB to ESC Programming Tool (Linker) will be required.

Package Includes:

1 x Electrocraze 100S-BL motor controller
